Key Facts
Frequency range from 150 kHz to 30 MHz
Power-handling capacity up to 200 A, constant current
Simulated impedance 50 μH || 50 Ω in line with CISPR 16-1-2
Brief Description

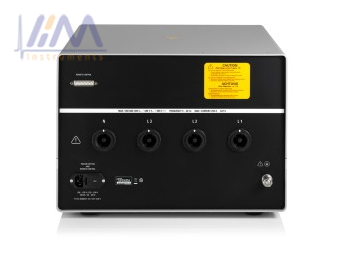

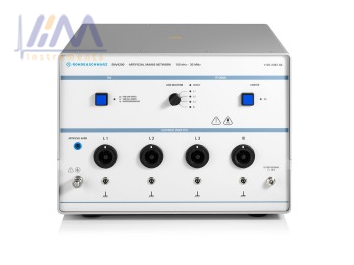

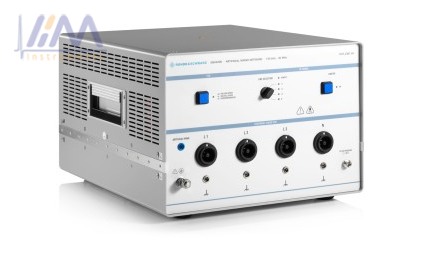

The R&S?ENV4200 200 A four-line V-network meets the requirements of CISPR 16-1-2, EN 55016-1-2, ANSI C63.4 and FCC Part 15 for V-networks with an impedance of 50 μH || 50 Ω in the frequency range from 150 kHz to 30 MHz.
Features
Air-core design and artificial hand
Built-in 10 dB attenuator pad
Built-in pulse limiter (can be switched off)
Specifications
Frequency range | 150 kHz to 30 MHz |
Simulated impedance | 50 μH || 50 Ω |
Error limits in line with CISPR16-1-2 | ±20% and ±11.5° |
